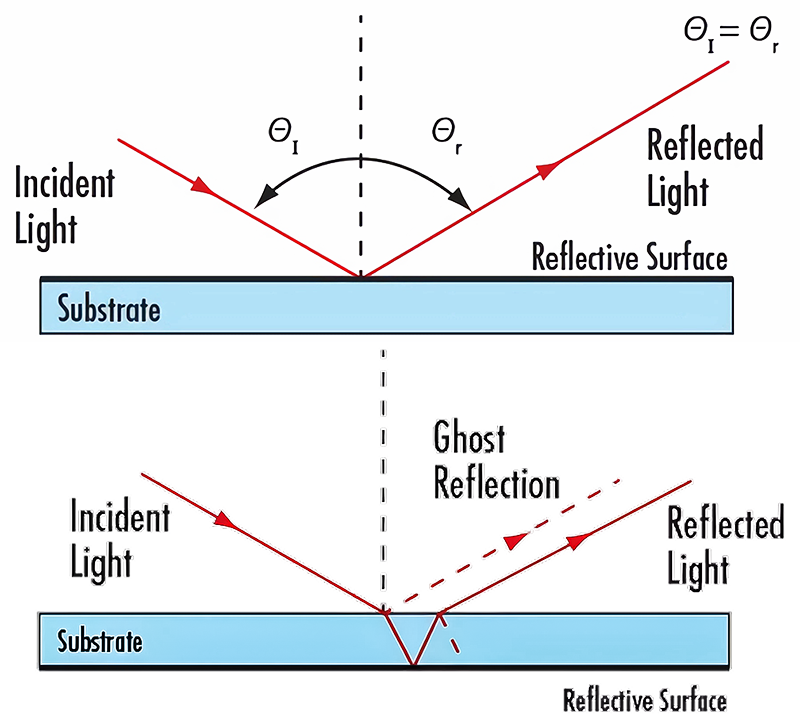

Mirror design is used to reflect light from various applications, including beam offset, interferometry, imaging, or lighting.
Mirrors are suitable for various industries, such as life sciences, metrology, semiconductors, or solar energy.
•Wide Variety of Shapes and Sizes Available
•Enhanced Aluminum, Protected Gold, and Protected Silver Coatings for high reflectivity from 450-1000nm
•Contact Us for Custom Sizes
Common Specifications
| Surface Flatness(P-V): | λ/4 | Substrate: | Float Glass，N-BK7，Fused Silica,Sapphire | ||||||||
| Surface Quality: | 60-40 | Coating Type: | Metal | ||||||||
| Bevel: | Protective bevel as needed | Edges: | Fine Ground | ||||||||
Products specifications in stock
| Stock number | Substrate | Diameter(mm) | Tolerence | Thickness(mm) | Tolerence | Coating | Stock |
| C2004061 | Float glass | 12.00 | -0.032/-0.102 | 4.50 | +0.10/-0.10 | protected aluminum | |
| C2274003 | Float glass | 13.00 | -0.016/-0.059 | 5.00 | -0/-0.3 | protected aluminum | |
| C2166004 | Float glass | 13.00 | -0.02/-0.20 | 4.30 | +0.05 | protected aluminum | |
| C2384001 | N-BK7 | 15.10 | -0.05/-0.16 | 2.40 | +0.05/-0.05 | protected aluminum,AOI30° | |
| C2004011 | Float glass | 16.00 | +0.10/-0.10 | 1.00 | +0.10/-0.10 | protected aluminum | |
| 2320001C | Float glass | 17.00 | -0.01/-0.10 | 0.50 | +0.01/-0.01 | Uncoated | |
| C2305001 | N-BK7 | 18.60 | 0/-0.25 | 2.00 | +0.1/-0.1 | protected silver | 5 |
| C2001011 | Float glass | 20.00 | -0.14/-0.28 | 1.70 | +0.1/-0.2 | protected aluminum | 152 |
| C2001010 | Float glass | 25.00 | -0.14/-0.28 | 1.80 | +0.1/-0.2 | protected aluminum | 1360 |
| C2282018-1 | N-BK7 | 25.00 | -0/-0.1 | 3.00 | ±0.05 | protected silver | 33 |
| C2001007 | Float glass | 32.00 | -0.08/-0.25 | 1.70 | +0.1/-0.1 | protected aluminum | 658 |
